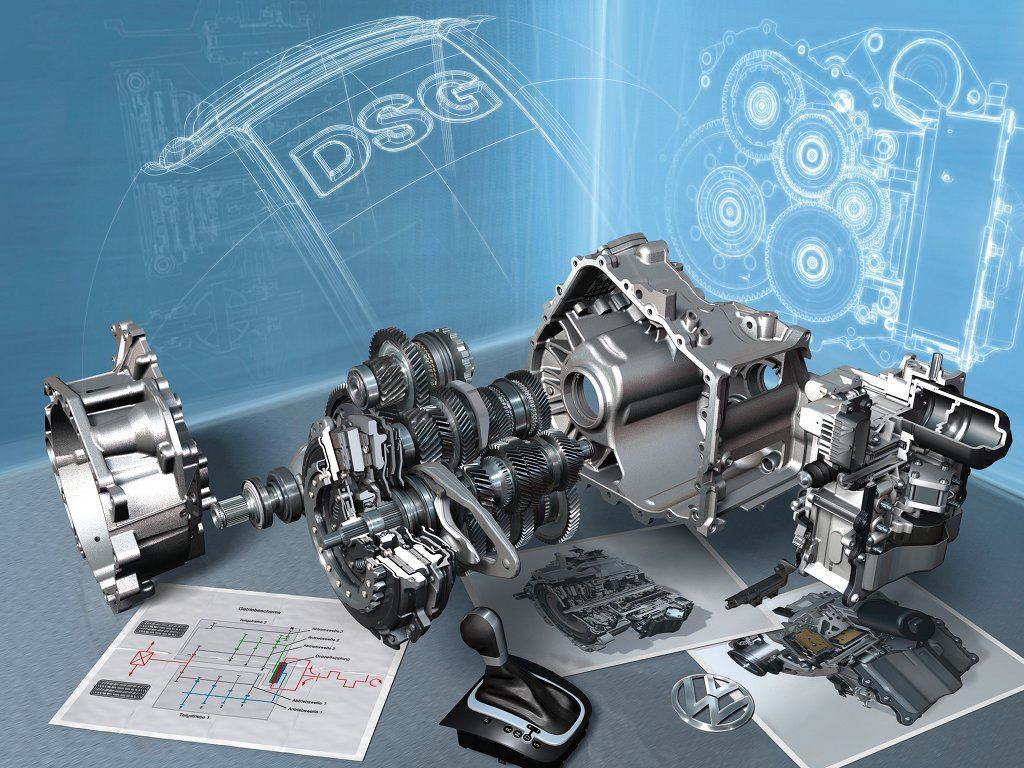

The DSG (Direct Shift Gearbox) system is licensed to the Volkswagen Group by BorgWarner and is basically 2 manual gearboxes with separate clutches contained within a single housing which enables much faster gear selection. The DSG boxes are electronically controlled by Temic Controllers and have the following generations available:
• DQ200 • DQ250 • DQ380 • DQ500 • DQ511 • DL501
Celtic Tuning has developed a range of calibrations and has gone even further by developing our system to give you the ultimate choice of options. For diesel or petrol applications, our system will allow you to specify exactly which options you would like and the exact requested values. Once the values have been entered our bespoke developed system will automatically generate the software.
Find out how you can have full control over your DSG gearbox
DSG ECU Remap Options
Increased RPM Limiter
When a vehicle is equipped with DSG, the RPM limiter must be set both inside the engine ECU and also the DSG controller or it will not take effect. Our software can ensure that both controllers have the same limit set ensuring a wider rev range.
Increased Shift Speeds
The actuation of the gear selector is controlled by the Temic Controller. Our software upgrade can increase the shift speed by up to 20%… faster gear selection translates directly into faster sprint times.
Increased Maximum Torque
The DSG controller has a maximum torque allowance set internally, therefore even if you tune the engine ECU to provide torque figures above the gearbox allowance, it will be restricted to that of the DSG controller. Raising the maximum torque allowance of the DSG releases potential power gains from the engine ECU.
Launch Control
All DSG controller, whether active or not, has launch control built into the software. We can activate or deactivate launch control and also set the RPM points to customers’ requirements.
Kick Down
The DSG controller also controls the kick-down function. We can stop the auto kick down which will enable the vehicle to be driven in gear at lower RPMs without auto change.
